MEDCATH

MEDCATH Safety IV Catheters

Contact Us

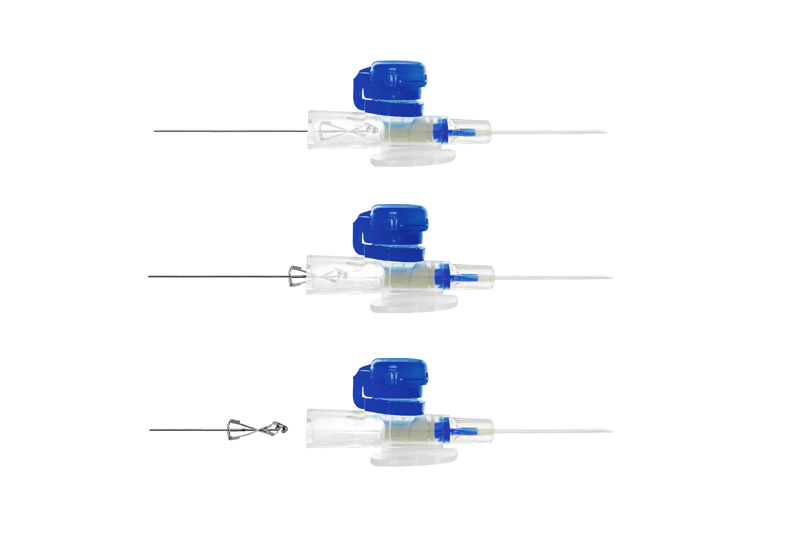

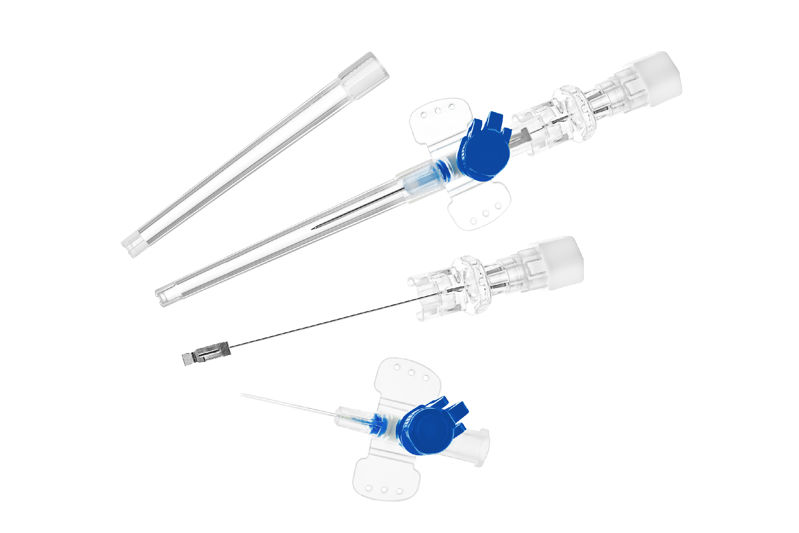

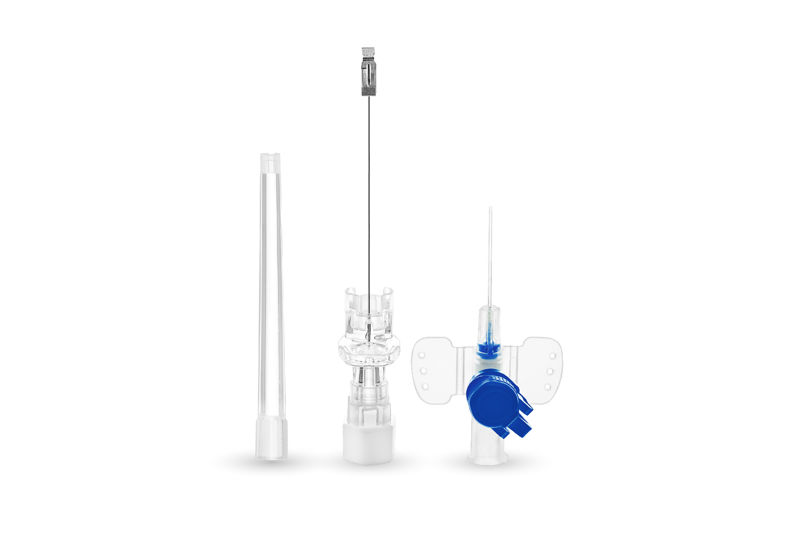

MEDCATH Safety IV Catheters features an optimized design, incorporating a 3-beveled needle to minimize puncture force through the skin. Crafted from flexible, durable material, the catheter boasts a smooth taper, kink resistance, and non-irritating properties. Its wings, designed akin to butterfly wings, facilitate secure catheter fixation, while the flashback chamber integrates an hydrophobic polytetrafluoroethylene (PTFE) filter. The safety shield features of the self-activating MEDCATH Safety IV Catheters eliminate the need for additional user manipulation, thereby preventing potential needle stick injuries and associated infections.

Product are available in two main variants:

  • For the variant with injection port: the device includes an integrated side port equipped with a one-way silicone valve. This design allows for intermittent bolus to be administered directly through the port without interrupting the primary infusion line.
  • For the variant without injection port: the device functions as a single conduit. For intermittent bolus can be performed by connecting an external accessory.

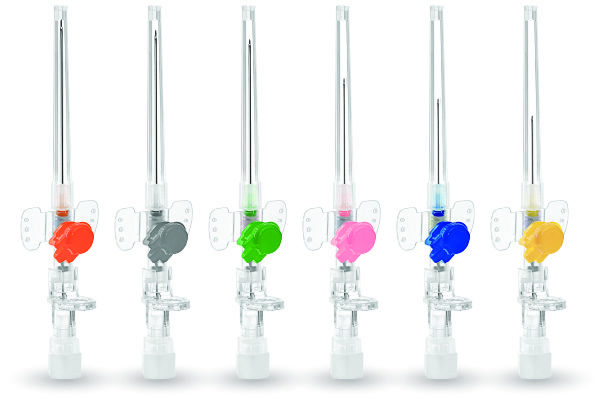

Color code, size wise and specification of Safety IV Catheter:

Catheter size

Color

Nominal diameter of the catheter (mm)

Effective length (mm)

Flow rate (ml/min)

G24

Yellow

0,72

19

20

G22

Blue

0,9

25

35

G20

Pink

1,1

32

65

G18

Green

1,3

45

105

G16

Grey

1,7

45

190

G14

Orange

2,1

45

290

Needle Gauge

14G, 16G, 18G, 20G, 22G, 24G

Needle Material

Stainless steel

Catheter Material

Fluorinated Ethylene Propylene (FEP)

Sterilization Method

Ethylene Oxide at the factory, following ISO 11135 standards

Packaging

50 pieces/box

12 boxes/carton

Custom packaging is available upon request

Wembley Medical's commitment to quality is reflected in our fully automated production process, conducted within a Class 100,000 cleanroom environment and governed by rigorous international quality management protocols.
